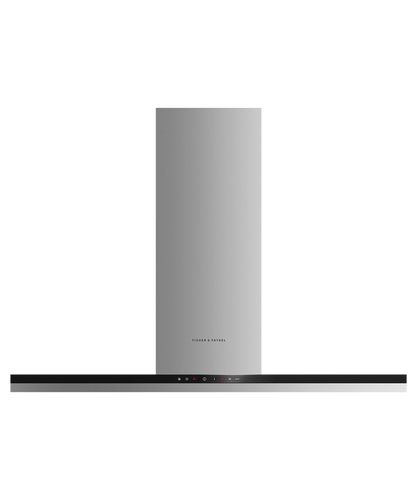

HC120DCXB3
120cm Series 7
Box Chimney Wall Rangehood
- Contemporary
The wall chimney rangehood has a contemporary styling, extracting steam, grease and cooking odours quietly and efficiently.
Stainless Steel and Glass
- Finish
- Stainless Steel and Glass
120cm Series 7
Box Chimney Wall Rangehood
- With three fan speeds plus boost, select the perfect extraction rate for your cooking
- Powerful maximum air movement of 780m³/hr
- Energy-efficient LED lighting to illuminate your cooking surface
Height
595-1035mm
Width
1198mm
Depth
500mm
BEAUTIFUL TO USE
Effective And Quiet
This rangehood features three fan speeds, plus a boost function, providing powerful extraction to quickly remove odours and steam. The timer keeps the rangehood working for up to 15 minutes before automatically turning off.
BEAUTIFUL TO USE
Simple To Use
This Fisher & Paykel rangehood features a sleek and easy to use touch-control panel. Low energy, dimmable LED lights provide superb illumination over the entire cooking surface.
BEAUTIFUL TO USE
Easy Cleaning
Designed for simple removal, the filters are easy to clean and dishwasher safe. The stainless steel mesh cover just needs a quick wipe to keep clean. An alert reminds you when to clean the filter to ensure you get the best performance out of your rangehood.
DESIGNED TO FIT
Seamless Integration
This wall chimney rangehood features sleek black glass and stainless steel styling that will complement any contemporary kitchen, and is designed to match the rest of Fisher & Paykel's kitchen appliance family.
Specifications
- Height
- 595-1035mm
- Width
- 1198mm
- Depth
- 500mm
Accessories (sold separately)
| Accessories (sold separately) Attributes | Value |
|---|---|
| Chimney extension | 791774 |
| Eave ducting kit | PD-RHK150E |
| Light bulb | 792556 |
| Recirculation carbon filter | 792481 |
| Recirculation diverter | 792560 |
| Roof ducting kit | PD-RHK150T |
| Side wall ducting kit | PD-RHK150W |
Fan ratings
| Fan ratings Attributes | Value |
|---|---|
| Maximum air movement | 780m³/hr |
| Maximum sound rating | 65dBA |
Installation and cleaning
| Installation and cleaning Attributes | Value |
|---|---|
| Dishwasher safe filters | 4 |
| Ducted | Top extraction |
| Internal blower included | |
| Recirculation | Optional - top extraction |
| Stainless steel filter cover | |
| Two piece height adjustable flue |
Performance
| Performance Attributes | Value |
|---|---|
| Airflow balancing plate | |
| Extraction type | Surface |
| Fan speeds | 3 |
| Filter type | Mesh |
| Number of filters | 4 |
Power requirements
| Power requirements Attributes | Value |
|---|---|
| Lighting power | 8W |
| Motor power | 240W |
| Supply voltage | 220-240V |
| Total Power | 248W |
Product dimensions
| Product dimensions Attributes | Value |
|---|---|
| Depth | 500mm |
| Height | 595-1035mm |
| Width | 1198mm |
Product information
| Product information Attributes | Value |
|---|---|
| Control type | Capacitive touch |
Ventilation features
| Ventilation features Attributes | Value |
|---|---|
| Dimmable lights | |
| Filter cleaning alert | |
| Light type | LED |
| Timer function |
Warranty
| Warranty Attributes | Value |
|---|---|
| Parts and labour | 2 years |
Resources
Please note: Videos are not for downloading purposes
Download the resource
Download and open pdf in new tab
Design Planning
CAD Downloads
-
2D CAD Files
-
3D CAD Files
