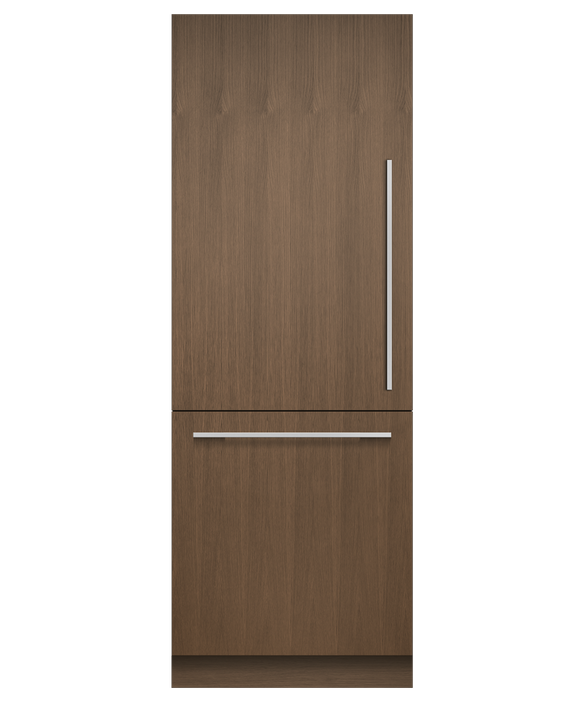

76cm Series 11 Integrated Refrigerator Freezer, Ice & Water, pdp
RS7621WLUK1

76cm Series 11 Integrated Refrigerator Freezer, Ice & Water

  • Series 11
  • Integrated
A slim profile, perfect for compact kitchens, or pair it with other Integrated models for generous chilled and frozen storage.
76cm Series 11 Integrated Refrigerator Freezer, Ice & Water
Panel Ready, Left hinge
Where to Buy
Finish
Panel Ready
Hinge
Left hinge
Also available in
Where to Buy

76cm Series 11 Integrated Refrigerator Freezer, Ice & Water

  • Keep food fresher for longer by constantly maintaining the ideal temperature with ActiveSmart technology
  • Create the perfect climate for each type of food with Variable Temperature Zone: choice of four food modes, Pantry, Fridge, Soft Freeze or Freezer
  • Convenient access to fresh, chilled water and ice with internal water dispenser and ice maker
  • Customise with your own kitchen cabinetry or purchase our stainless steel door panel and handle accessories
Height 2134mm
Width 756mm
Depth 610mm

Features & Benefits

The feature images used on this page are examples to demonstrate the product benefits and may differ slightly from the actual product.

PERFECT RESULTS

Variable Temperature Zone

Create the perfect climate and store each type of food at optimal temperature and humidity with Variable Temperature Zone, reducing food waste due to spoiling. You have the choice of four food modes: Pantry, Fridge, Soft Freeze or Freezer. Use the Max cold feature for periods of high refrigerator or freezer use, or full grocery loads.

Pantry Mode
PERFECT RESULTS

Pantry Mode

Not everything benefits from cold storage. Pantry Mode (11 to 13°C) is the perfect climate to store foods that benefit from a cool, dark place, including bread, many types of fruit, bananas, avocados, tomatoes, nuts, grains and cereals.

Soft Freeze Mode
PERFECT RESULTS

Soft Freeze Mode

Soft freeze is for food that requires a gentle freeze and quick thawing, perfect for items that will be consumed soon. It allows easy portioning and the ability to heat, cook or serve straight from the compartment, without waiting for it to thaw.

Activesmart Foodcare
PERFECT RESULTS

Activesmart Foodcare

ActiveSmart Foodcare learns how you live. It’s technology which understands how you use your refrigerator and adjusts temperature, airflow and humidity inside to help keep food fresher for longer.

Internal Water Dispenser And Ice Maker
BEAUTIFUL TO USE

Internal Water Dispenser And Ice Maker

Both the water dispenser and ice maker are located inside this Integrated model, leaving an uninterrupted exterior that blends in seamlessly with surrounding cabinetry. The slimline water dispenser is flush fit in order to maximise internal storage space, with a temperature-controlled flow and an angled water delivery to capture any drips and spills.

Complementary Design
DESIGNED TO FIT

Complementary Design

Both the 61cm and 76cm Integrated Refrigerator Freezers can be installed separately or paired with a Column Refrigerator, Freezer or Wine Column. Customise with your own kitchen cabinetry and handles, or purchase our stainless steel door panel and handle options.

Design Quality
BUILT TO LAST

Design Quality

The premium design and finish includes a steel interior lining as well as full extension metal shelf runners for easy access, robust glass shelving and quality hinges designed for daily use.

Specifications

Height
2134mm
Width
756mm
Depth
610mm

Accessories (sold separately)

Accessories (sold separately) Attributes Value
Door panel stainless steel Left hinge 762mm RD7621WLD
Door panel stainless steel Right hinge 762mm RD7621WRD
Handle kit Classic AHCLRD7621W
Handle kit Contemporary round, aluminium AHSRD7621W
Handle kit Contemporary square fine, aluminium AHD5RD7621W
Handle kit Contemporary square fine, black AHD5RD7621WB
Handle kit Professional round flush AHP3RD7621W
Joiner kit AJ-RS21LR
Toe kick stainless steel 1372mm AKRS13710
Toe kick stainless steel 1524mm AKRS15210
Toe kick stainless steel 1981mm AKRS19810
Toe kick stainless steel 2134mm AKRS21310
Toe kick stainless steel 762mm AKRS7610

Capacity

Capacity Attributes Value
Volume 449L
Volume freezer 151L
Volume refrigerator 298L

Consumption

Consumption Attributes Value
Energy consumption 1.06kWh/24h
Energy rating Grade 2

Features

Features Attributes Value
Adjustable door shelves 4
Covered door shelves 1
Door alarm
Gallon door shelves 1
LED bin lighting
LED ceiling lighting
LED side lighting
SmartTouch interface at counter height
Stackable bottle holders 4
Ultra slim water dispenser

Freezer Features

Freezer Features Attributes Value
Automatic ice maker
Door alarm
Freezer bins 2
Freezer trays 1
Ice Boost
LED bin lighting
LED ceiling lighting
LED side lighting
Max Cold
SmartTouch interface at counter height

Performance

Performance Attributes Value
ActiveSmart Foodcare
Adaptive defrost
Dual evaporator
Frost free freezer
Humidity control system
Inverter controlled compressor
Sabbath mode
Variable food modes Pantry; Fridge; Soft freeze; Freezer
Variable temperature zones 2

Power requirements

Power requirements Attributes Value
Rated current 10A
Supply frequency 50Hz
Supply voltage 230V

Product dimensions

Product dimensions Attributes Value
Depth 610mm
Height 2134mm
Width 756mm

Warranty

Warranty Attributes Value
Parts and labour 1 year
