60cm Series 9 Integrated Triple Zone Freezer, Ice, pdp
RS6019F3LJ1

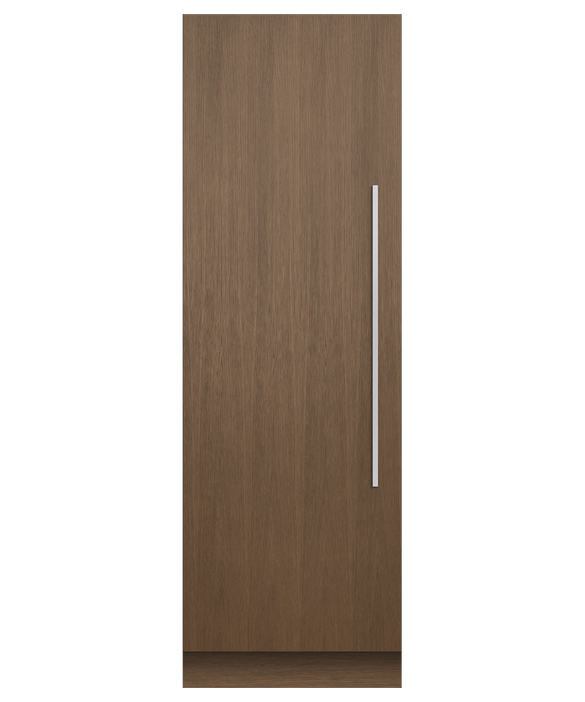

60cm Series 9 Integrated Triple Zone Freezer, Ice

Pair with the Integrated Triple Zone Refrigerator for the ultimate kitchen solution – this model features three independent food zones taking cooling flexibility to a new level.
60cm Series 9 Integrated Triple Zone Freezer, Ice
Panel Ready, Left hinge
Where to Buy
Finish
Panel Ready
Hinge
Left hinge
Where to Buy

60cm Series 9 Integrated Triple Zone Freezer, Ice

  • Three independent food zones, each with adjustable temperature to store different foods
  • Panel ready, flush fit design with 4mm gaps and custom height installation
  • Internal ice maker with boost for busy times
  • Easy-to-use touch-control panel and Wi-Fi capability

Joiner kit sold separately.

Height 1870mm
Width 592mm
Depth 576mm

Features & Benefits

The feature images used on this page are examples to demonstrate the product benefits and may differ slightly from the actual product.

Three Levels Of Freshness
PERFECT RESULTS

Three Levels Of Freshness

When it comes to optimal food preservation, one temperature does not fit all. Three independent food zones give you full control over the way you care for food. The Freezer zone has adjustable temperature from -21°C to -14°C, while the top two compartments can be converted into a Chill (-1.5°C to 0°C), Soft-Freeze (-10°C to -8°C) or Freezer zone (-21°C to -14°C), to best suit different types of food. Adjust temperature for everyday convenience, or to provide additional chilling capacity for special occasions.

Perfect Fit
DESIGNED TO FIT

Perfect Fit

These models fit flush, with only 4mm gaps around them and no visible hinges or grilles. Our Integrated models can be seamlessly hidden behind your cabinetry, or you can purchase our stainless steel door panel.

Mix & Match
DESIGNED TO FIT

Mix & Match

These modular refrigerators and freezers can be mixed and matched, with different sizes and finishes. Installed side by side or individually throughout the kitchen, you can create a cooling solution to suit your lifestyle. Customise with your own kitchen cabinetry and handles, or purchase our stainless steel door panel and handle options.

Chill Mode
PERFECT RESULTS

Chill Mode

Keep ready-to-eat food fresher for longer with Chill mode (-1.5 to 0°C). Chill mode is a perfect solution for everyday life. It keeps meats, poultry and fish as cool as possible without freezing, retaining vital freshness and helps food retain its condition. It’s also great for entertaining. Set one of the top two compartments to Chill mode to quickly bring beverages down to serving temperature.

Clever Energy
RESPECT FOR THE PLANET

Clever Energy

ActiveSmart™ Foodcare learns how you live. It is technology that understands how you use your freezer and adjusts temperature, airflow and humidity inside to help keep food fresher for longer.

Simple Installation
DESIGNED TO FIT

Simple Installation

Our Integrated products are easy to install, whether you are renovating your kitchen or designing a new one. Adjustable front and rear feet allow for uneven floors alongside adjustable door panels that can be customised to match your kitchen. These models are designed to easily slide into place as separate units – a perfect fit for European design kitchens.

Ease Of Use
BEAUTIFUL TO USE

Ease Of Use

Using the intuitive touch-sensitive control panel, you can easily adjust the temperature to suit. Beautiful to use, the freezer door is family safe with a soft-close mechanism.

Specifications

Height
1870mm
Width
592mm
Depth
576mm

Accessories (included)

Accessories (included) Attributes Value
Hinge change (from left hinge to right hinge)
Joiner Kit AJRS19LR

Accessories (sold separately)

Accessories (sold separately) Attributes Value
Door panel set stainless steel Right & Left hinge RD6019
Handle kit Classic AHCLRDSF
Handle kit Contemporary round, aluminium AHSRDSF
Handle kit Contemporary square fine, aluminium AHD5RDSF
Handle kit Contemporary square fine, black AHD5RDSFB
Toe kick stainless steel 1200mm AKRS12010
Toe kick stainless steel 1800mm AKRS18010
Toe kick stainless steel 600mm AKRS06010

Capacity

Capacity Attributes Value
Volume 303L
Volume freezer 303L

Features

Features Attributes Value
Adjustable door shelves 2
SmartTouch control panel

Freezer Features

Freezer Features Attributes Value
Automatic ice maker
Bottle chill
Door alarm
Fast freeze
Freezer bins 4
Ice Boost
Ice making rate per day 1kg
LED bin lighting
LED ceiling lighting
LED side lighting

Installation Dimensions

Installation Dimensions Attributes Value
Minimum inside width of cabinetry frame 600mm
Minimum internal depth of cabinetry 600mm
Minimum internal height of cabinetry 1880mm

Performance

Performance Attributes Value
ActiveSmart Foodcare
Adaptive defrost
Frost free
Inverter controlled compressor
Sabbath mode
Triple evaporator
Variable food modes Chill, Soft freeze, Freezer
Variable temperature zones 3

Power requirements

Power requirements Attributes Value
Amperage 10A
Supply frequency 50Hz
Supply voltage 230V

Product dimensions

Product dimensions Attributes Value
Depth 576mm
Height 1870mm
Width 592mm

Warranty

Warranty Attributes Value
Parts and labour 2 years
Sealed system parts only 5 years
