特性&优势
产品图片仅供参考，以实物为准。
黑色玻璃
- 完成
- 黑色玻璃

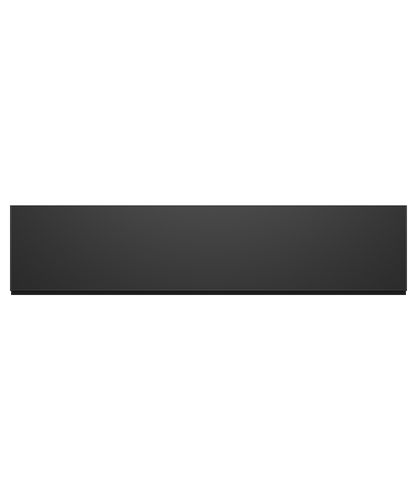

60cm Series 9
简约型真空密封抽屉
- 三种真空和热封级别，用于食物储存、腌制或分装
- 轻松进行低温慢煮烹饪
- 一按即开的抽屉和直观的触摸控制，操作轻松自如
- 专为搭配我们简约型电器而设计，打造至美厨房解决方案
高度
140mm
宽度
596mm
深度
565mm
PERFECT RESULTS
PRESERVE FRESHNESS
Vacuum sealing removes excess air to create the ideal environment for longer-lasting freshness. By reducing air exposure, it helps prevent bacteria growth and freezer burn, keeping flavours and textures intact. Food-grade, BPA-free bags offer a safe and reusable storage solution.
BEAUTIFUL TO USE
EFFORTLESS SOUS VIDE PREPARATION
Enhance flavour and texture with vacuum sealing that locks in marinades, natural juices, and nutrients. Create perfectly sealed portions ready for precise sous vide cooking, ensuring consistently tender and flavourful results.
BEAUTIFUL TO USE
THREE LEVELS OF SEALING
Choose from three levels of vacuum sealing to suit a variety of foods, from delicate items such as soft fruits and herbs to hearty cuts of meat.
PERFECT RESULTS
PERFECT WINE PRESERVATION
Keep your wine tasting at its best with a simple vacuum seal. Using the included tube, adapters and stopper, air is gently removed to preserve flavour and aroma, so every pour stays fresh and perfectly balanced.
BEAUTIFUL TO USE
EASY TO CLEAN
The stainless steel interior is designed for simple maintenance and can be easily wiped clean with a damp cloth.
规格
- 高度
- 140mm
- 宽度
- 596mm
- 深度
- 565mm
附件
| 附件 Attributes | Value |
|---|---|
| 外部真空配件 | 转接头、塞子和管子 |
| 大号不含BPA真空密封袋 | 50 个袋子，部件号 793034 |
| 小号不含BPA真空密封袋 | 50 个袋子，部件号 793033 |
容量
| 容量 Attributes | Value |
|---|---|
| 可用高度 | 80mm |
| 最大真空密封袋尺寸 | 400mm x 265mm |
清洁
| 清洁 Attributes | Value |
|---|---|
| 可移除密封条和密封条盖 | |
| 易洁不锈钢内胆 | |
| 易清洁玻璃盖 |
控制
| 控制 Attributes | Value |
|---|---|
| Interface type | Touch button controls |
| 待机模式 | |
| 按压开启式抽屉 | |
| 提示音 |
性能
| 性能 Attributes | Value |
|---|---|
| 外部真空配件 | |
| 泵功率 | 150W |
| 泵压力 | 10 bar |
| 真空密封等级 | 3 |
| 真空等级 | 3 |
电源要求
| 电源要求 Attributes | Value |
|---|---|
| Connection type | Flex cord |
| Dedicated circuit | 10A |
| Rated power | 320W |
| 电源电压 | 220-240V |
| 电源线长度 | 1800mm |
| 电源频率 | 50Hz |
产品规格
| 产品规格 Attributes | Value |
|---|---|
| 可调节的面板与周围的橱柜对齐 | |
| 宽度 | 596mm |
| 深度 | 565mm |
| 高度 | 140mm |
安全
| 安全 Attributes | Value |
|---|---|
| 不含双酚A真空密封袋 | 随附 100 个袋子 |
| 全伸出型滑架 |
