30" Series 9 Professional 5 Burner Dual Fuel Range, Natural Gas, pdp
  • END OF LINE
RDV2-305-N_N

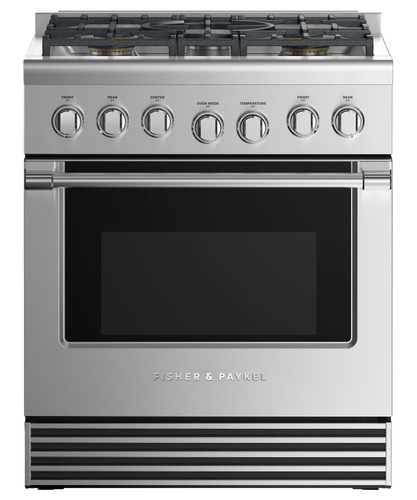

30" Series 9
Professional Dual Fuel 5 Burner Range

Natural Gas

4.3 out of 5 Customer Rating Reviews
  • Professional
Make a statement in less space, with this powerful gas burner range and spacious convection oven.
30" Series 9
Professional Dual Fuel 5 Burner Range
Stainless Steel, Natural gas
Where to Buy
Finish
Stainless Steel
Fuel Type
Natural gas
Also available in
Where to Buy

30" Series 9
Professional Dual Fuel 5 Burner Range

Natural Gas

  • Top burner heat of 23,500 BTU, for seriously fast boiling
  • Convection oven with 4 cu ft total capacity
  • Non-tip full-extension shelves for safe removal of hot dishes
Height 353⁄4 - 363⁄4 "
Width 297⁄8 "
Depth 291⁄8 "

Features & Benefits

The feature images used on this page are examples to demonstrate the product benefits and may differ slightly from the actual product.

Cooktop Power
BEAUTIFUL TO USE

Cooktop Power

Sealed Dual Flow Burners™ deliver cooktop power up to 23,500 BTU (NG models) for seriously fast boiling right down to a precise 140°F full surface simmer with the gentlest of flames.

PERFECT RESULTS

Total Control

Precise control across high and low settings is delivered through the halo-illuminated cooktop dials. The ovens have true convection and electronic oven control for precise and consistent temperatures.

PERFECT RESULTS

Consistent broiling

The Dual Fuel Range broiler provides an even heat that covers a very large surface area — perfect for browning a fully loaded oven tray.

BEAUTIFUL TO USE

Easy to clean

The Dual Fuel Range oven has a self-cleaning function and removable side racks. The cooktop has sealed burners and an encapsulated cooking surface with a commercial-style stainless steel finish.

BEAUTIFUL TO USE

Instant Visibility

Control dials have halo-illumination glowing white – heating up; orange – temperature reached; red – self-cleaning mode. The oven is illuminated by two powerful incandescent lights.

BEAUTIFUL TO USE

Cooking Flexibility

The cooktop is designed for easy access to any burner with grates you can smoothly slide pots across, while the oven cavity is large enough to allow you to cook multiple dishes at once.

Specifications

heading.dimensions.header
Height
353⁄4 - 363⁄4 "
Width
297⁄8 "
Depth
291⁄8 "

Accessories (sold separately)

Accessories (sold separately) Attributes Value
Square handle option AH-R30

Burner ratings

Burner ratings Attributes Value
Maximum burner power 23500 BTU
Power back left 18500BTU
Power back right 18500BTU
Power centre 23500BTU
Power front left 18500BTU
Power front right 18500BTU
Total cooktop power 97500 BTU

Capacity

Capacity Attributes Value
Shelf positions 5
Shelf positions (main oven) 5
Total capacity (main oven) 4L

Cleaning

Cleaning Attributes Value
Pyrolytic self-clean

Controls

Controls Attributes Value
Electric circuit 4 wire
Metal illuminated dials

Gas Requirements

Gas Requirements Attributes Value
Fitting and pipe ½ NPT, min. ⅝" ∅ flex line
Supply Pressure (natural gas) 6" to 9" W.C

Oven features

Oven features Attributes Value
Auto re-ignition system
Broil pan
Concealed element
Electronic oven control
Full extension telescopic sliding shelves
Internal light
True convection

Oven functions

Oven functions Attributes Value
Bake
Broil
Clean
Convection bake
Convection broil
Number of functions 6
True convection

Oven performance

Oven performance Attributes Value
Bake power 3500W
Broil 4000 BTU
Main oven - True convection power 2500W

Power requirements

Power requirements Attributes Value
Amperage 30A
Rated current 30A
Supply frequency 60Hz

Product dimensions

Product dimensions Attributes Value
Depth 29 1⁄8"
Height 35 3⁄4 - 36 3⁄4"
Width 29 7⁄8"

Rangetop features

Rangetop features Attributes Value
Sealed range top
Vent trim included

Recommended Back Guards Ventilation

Recommended Back Guards Ventilation Attributes Value
Combustible situation BGRV2-3030H
Minimum CFM 600
Non combustible situation BGRV2-3030 / BGRV2-1230
Recommended hood HCB30-6_N (Professional Range Hood)

Safety

Safety Attributes Value
Full extension telescopic sliding shelves
