36" Series 9 Integrated CoolDrawer™ Multi-temperature Drawer, pdp
RB36S25MKIW N 1

36" Series 9
Integrated CoolDrawer™ Multi-temperature Drawer

3.9 out of 5 Customer Rating Reviews
  • Integrated
Use your CoolDrawer™ as a refrigerator, pantry or freezer with the push of a button. Customize with cabinetry or a stainless steel panel.
In-use Energy Carbon Emissions Estimate
18.5kgCO2e/year (Refrigerator), 37.0kgCO2e/year (Freezer)
36" Series 9
Integrated CoolDrawer™ Multi-temperature Drawer
Panel Ready
Where to Buy
Finish
Panel Ready
MSRP $ 4,799.00
Where to Buy

36" Series 9
Integrated CoolDrawer™ Multi-temperature Drawer

  • Variable Temperature Zone lets you change between five different food modes – refrigerator, freezer, pantry, chill and wine
  • Choose between a Professional or Contemporary stainless steel front panel and handle, or customize with your own kitchen cabinetry
Height 25 3⁄16 "
Width 3311⁄16 "
Depth 2115⁄16 "

Features & Benefits

The feature images used on this page are examples to demonstrate the product benefits and may differ slightly from the actual product.

Fridge
PERFECT RESULTS

Fridge

The ideal storage for most foods such as fruit and vegetables, dairy products, processed meats and drinks. The compact upper storage tray is a perfect place for sensitive foods such as peaches, cherries, cheeses and deli items, while the tall bin is ideal for large bottles and containers.

Pantry
PERFECT RESULTS

Pantry

Designed for foods that require a cool, dark place for storage, such as tropical fruits, tomatoes, bananas, bread and cereals. Pantry Mode provides a solution for all those foods that you didn't previously know what to do with and have always resorted to storing on the bench or in the cupboard.

Wine Mode
PERFECT RESULTS

Wine Mode

Using Wine Mode, connoisseurs can take advantage of special settings that preserve and present wine at its optimum temperature. Wine Mode is ideal for long term storage of all wine at 54°F. It also offers short term storage at 45°F for white wine and 59°F for red wine.

Chill Mode
PERFECT RESULTS

Chill Mode

Chill Mode sets the compartment to a temperature ideal for highly perishable meats, poultry and seafood. For these types of food it is ideal to hold them at a temperature as close to freezing as possible to retain their vital freshness. Chill Mode sets the compartment at 31°F, just above the freezing temperature for meat.

Freezer Mode
PERFECT RESULTS

Freezer Mode

Ideal for general frozen food storage with the added flexibility of three freezer functions - bottle chill, fast freeze and deep freeze. Freezer Mode is set at 0°F for longer term storage for frozen items.

Specifications

heading.dimensions.header
Height
25 3⁄16 "
Width
3311⁄16 "
Depth
2115⁄16 "

Accessories (sold separately)

Accessories (sold separately) Attributes Value
Door panel set stainless steel RD3625S
Handle kit Classic AHCLRD36S

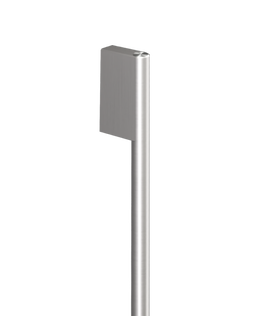

Handle kit Contemporary round, aluminium AHSRB36S
Handle kit Contemporary square fine, aluminium AHD5RD36S
Handle kit Contemporary square fine, black AHD5RD36SB
Handle kit Professional round flush AHP3RD36S

Capacity

Capacity Attributes Value
Total gross capacity 3.1cu ft

Consumption

Consumption Attributes Value
Energy rating Energy star Most efficient
Energy usage 150kWh/year (Refrigerator), 300kWh/year (Freezer)
In-use energy carbon emissions estimate 18.5kgCO2e/year (Refrigerator), 37.0kgCO2e/year (Freezer)

Features

Features Attributes Value
Door alarm
LED lighting
Rapid cool function
SmartTouch control panel

Power requirements

Power requirements Attributes Value
Supply voltage 110V

Product dimensions

Product dimensions Attributes Value
Depth 21 15⁄16"
Height 25 3⁄16"
Width 33 11⁄16"

Safety and compliance

Safety and compliance Attributes Value
ADA compliant

Warranty

Warranty Attributes Value
Parts and labour 2 years
Sealed system parts and labor additional 3 years
