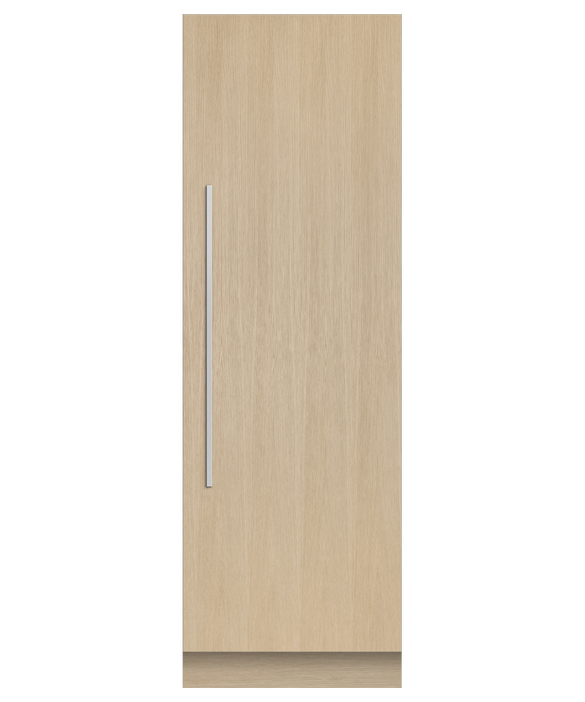

RS2474S3RH1
24" Series 9
Integrated Triple Zone Refrigerator
- Integrated
-
Smart
Pair with the Integrated Triple Zone Freezer for the ultimate kitchen solution – this model features three independent food zones taking cooling flexibility to a new level.
Panel Ready,
Right Hinge
- Finish
- Panel Ready
- Hinge
- Right Hinge
MSRP
$ 6,399.00
Configure
How this works
24" Series 9
Integrated Triple Zone Refrigerator
- Three independent food zones, each with adjustable temperature to store different foods
- Panel ready, flush fit design with 3/16″ gaps and custom height installation
- Convenient access to fresh, chilled water with internal water dispenser
- Easy-to-use touch-control panel and Wi-Fi capability
Joiner kit accessory for paired installation sold separately. Available as right hinge, changeable to left hinge (parts included).
Height
7358 "
Width
23516 "
Depth
221116 "
PERFECT RESULTS
Three Levels Of Freshness
When it comes to optimal food preservation, one temperature does not fit all. Three independent food zones give you full control over the way you care for food. The Fridge zone has adjustable temperature from 34 to 43°F, while the bottom two compartments can be converted into a Fridge (34 to 43°F), Pantry (52 to 55°F) or Chill zone (29 to 32°F), to best suit different types of food. Adjust temperature for everyday convenience, or to provide additional chilling capacity for special occasions.
DESIGNED TO FIT
Mix & Match
These modular refrigerators and freezers can be mixed and matched, with different sizes and finishes. Installed side by side or individually throughout the kitchen, you can create a cooling solution to suit your lifestyle. Customize with your own kitchen cabinetry and handles, or purchase our stainless steel door panel and handle options.
DESIGNED TO FIT
Perfect Fit
These models fit flush, with only 3/16" gaps around them and no visible hinges or grilles. Our Integrated models can be seamlessly hidden behind your cabinetry, or you can purchase our stainless steel door panel.
BEAUTIFUL TO USE
Slimline Water Dispenser
The slimline water dispenser is located inside this Integrated model, leaving an uninterrupted exterior that blends in seamlessly with surrounding cabinetry. The flush fit design maximizes internal storage space, with a temperature-controlled flow and an angled water delivery to reduce drips and spills.
RESPECT FOR THE PLANET
Clever Energy
ActiveSmart™ Foodcare learns how you live. It is technology that understands how you use your refrigerator and adjusts temperature, airflow and humidity inside to help keep food fresher for longer.
DESIGNED TO FIT
Simple Installation
Our Integrated products are easy to install, whether you are renovating your kitchen or designing a new one. Adjustable front and rear feet allow for uneven floors alongside adjustable door panels that can be customized to match your kitchen. These models are designed to easily slide into place as separate units – a perfect fit for European design kitchens.
BEAUTIFUL TO USE
Ease Of Use
Using the intuitive touch-sensitive control panel, you can easily adjust the temperature to suit. Beautiful to use, the refrigerator door is family safe with a soft-close mechanism.
Specifications
- Height
- 7358 "
- Width
- 23516 "
- Depth
- 221116 "
Accessories (included)
| Accessories (included) Attributes | Value |
|---|---|
| Hinge change (from right hinge to left hinge) |
Accessories (sold separately)
| Accessories (sold separately) Attributes | Value |
|---|---|
| Door panel set stainless steel | (Right & left hinge) RD2474 |
| Handle kit Classic | AHCLRDSF |
| Handle kit Contemporary round, aluminium | AHSRDSF |
| Handle kit Contemporary square fine, aluminium | AHD5RDSF |
| Handle kit Contemporary square fine, black | AHD5RDSFB |
| Handle kit Professional round flush | AHP3RDSF |
| Handle kit Professional round flush, Brass off-stands | AHP3RDSFBA |
| Joiner kit | AJRS74LR |
| Toe kick stainless steel 23" | AKRS2304 |
| Toe kick stainless steel 47" | AKRS4704 |
| Toe kick stainless steel 71" | AKRS7104 |
Capacity
| Capacity Attributes | Value |
|---|---|
| Volume refrigerator | 10.8cu ft |
Consumption
| Consumption Attributes | Value |
|---|---|
| Energy rating | Energy star |
| Energy usage | 152kWh/year |
| In-use energy carbon emissions estimate | 18.7kgCO2e/year |
Features
| Features Attributes | Value |
|---|---|
| Adjustable door shelves | 3 |
| Adjustable glass cantilevered shelves | |
| Covered door shelves | 1 |
| Door alarm | |
| Internal water dispenser | |
| LED bin lighting | |
| LED ceiling lighting | |
| LED lighting | |
| LED side lighting | |
| Smart Appliance | |
| SmartTouch control panel | |
| Stackable bottle holders | 2 |
| Water tank capacity | 30.7oz |
Installation Dimensions
| Installation Dimensions Attributes | Value |
|---|---|
| Minimum inside width of cabinetry frame | 23 58" |
| Minimum internal depth of cabinetry | 24" |
| Minimum internal height of cabinetry | 74" |
Performance
| Performance Attributes | Value |
|---|---|
| ActiveSmart™ Foodcare | |
| Adaptive defrost | |
| Frost free | |
| Humidity control system | |
| Inverter controlled compressor | |
| Sabbath mode | |
| Triple evaporator | |
| Variable food modes | Pantry; Fridge; Chill |
| Variable temperature zones | 3 |
Power requirements
| Power requirements Attributes | Value |
|---|---|
| Rated current | 10A |
| Supply frequency | 60Hz |
| Supply voltage | 115V |
Product dimensions
| Product dimensions Attributes | Value |
|---|---|
| Depth | 22 1116" |
| Height | 73 58" |
| Width | 23 516" |
Warranty
| Warranty Attributes | Value |
|---|---|
| Parts and labour | 2 years |
| Sealed system parts only | 5 years |
