Features & Benefits
The feature images used on this page are examples to demonstrate the product benefits and may differ slightly from the actual product.
- COMING SOON
DW24UDT4X4
Series 9
Contemporary Tall Built-in Dishwasher
- Contemporary
- SMART & CONNECTED
Designed to adapt to every load, this tall dishwasher with increased usable height offers flexible loading features, including stemware grippers and adjustable tines to provide exceptional care for everything from delicate glassware to heavily soiled cookware. With a 42dbA rating, it combines a Triple Wash System, Auto Cycle sensing, AutoDry+, Air Curtain technology, variable wash pressure and independent spray arms to deliver precise cleaning and drying performance.
Stainless Steel
- Finish
- Stainless Steel
starting from
$1,999.00
Series 9
Contemporary Tall Built-in Dishwasher
- Quiet 42dBA noise rating, ideal for open plan kitchens
- Triple Wash System , AutoDry+ and Air Curtain deliver perfect results for both cleaning and drying
- Variable wash pressure with and independent spray arms deliver targeted cleaning
- Flexible racking with telescopic slides and LED lighting for better loading
- Connect via Wi-Fi and the SmartHQ™ app to access energy usage insights and guidance
Height
3334 - 3618 "
Width
2312 "
Depth
221316 "
PERFECT RESULTS

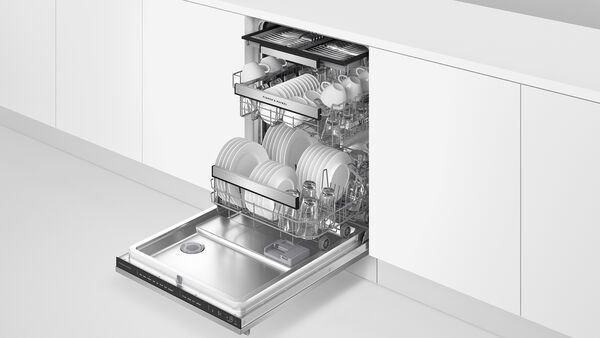

80 YEARS OF CLEAN DISHES
In our distinct and timeless Contemporary style, this dishwasher reflects 80 years of dishwashing expertise. A proud handle creates a confident visual statement to complement a range of interiors, while the Auto Cycle draws on decades of research into the science of clean dishes, automatically adjusting wash conditions for consistent cleaning performance and efficient use of resources.
BEAUTIFUL TO USE

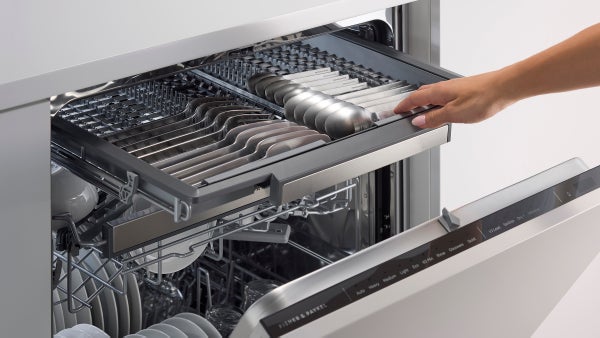

ULTIMATE FLEXIBILITY
No two days in the kitchen are the same, so your dishwasher needs to adapt. With increased usable height, there’s more flexibility to fit larger cookware and taller dishes up to 12 3/4" with ease. Telescopic slides, a flexible cutlery tray, height-adjustable middle basket, plus cup racks and pitch-adjustable foldable tines let you tailor the interior to each load. Secure smaller items easily and create a layout that works for everything from everyday meals to larger clean-ups.
BEAUTIFUL TO USE
QUIET AND CONSIDERED
Open-plan kitchens call for appliances that work quietly and beautifully. With a very low 42dBA noise rating thanks to the BLDC motor with fewer moving parts, this dishwasher is designed to operate with minimal noise and not disrupt your household. For better visibility when loading or unloading, internal LED lighting provides gentle illumination inside, making contents easy to see at a glance.
PERFECT RESULTS

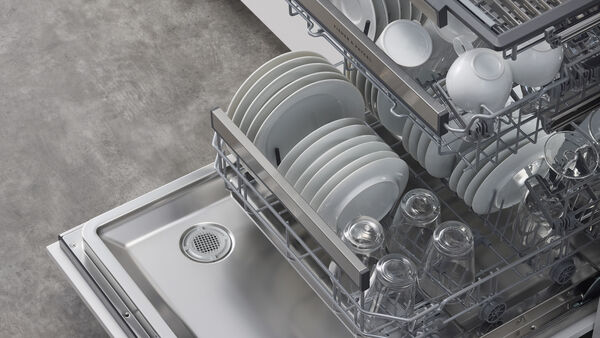

TRIPLE WASH SYSTEM
The rule of thirds is a principle of balance in design, where three elements work together to create harmony. Inspired by this, our Triple Wash System brings together three racks, three independent spray arms and three-stage filtration to work harmoniously inside the dishwasher. With balanced coverage across every level, the result is consistent cleaning performance in every load.
PERFECT RESULTS

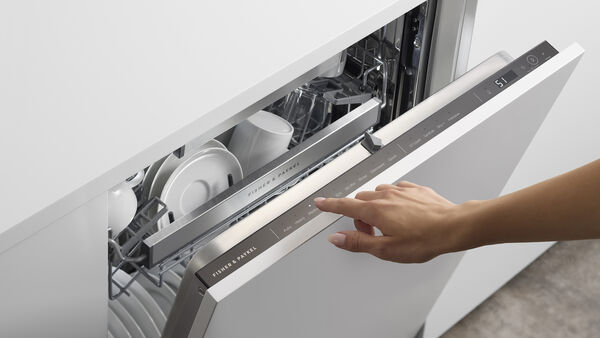

EXCEPTIONAL DRYING PERFORMANCE
Clean dishes are the result of more than just the wash, with drying a crucial final step in the process. AutoDry+ automatically opens the door and uses a fan to circulate air at the end of the cycle, releasing steam to support more effective drying with minimal energy use. Air Curtain channels steam away from surrounding cabinetry, delivering dishes that are clean, dry, and ready to be put away.
PERFECT RESULTS

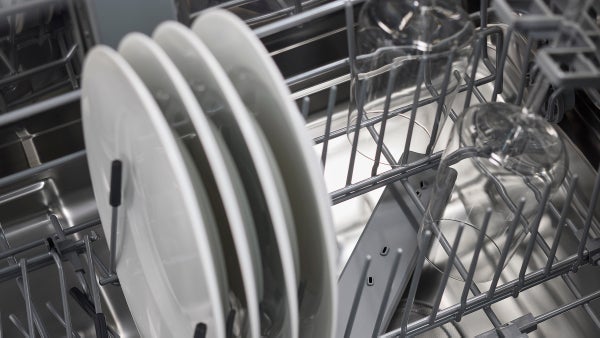

CUSTOM CYCLE SELECTION
Not every load demands the same approach. Variable wash pressure and independent spray arms work together to deliver targeted cleaning performance, adapting water flow and force for everything from delicate glassware to heavily soiled cookware. Eco Cycle balances time and energy for a thorough clean while using up to 45% less energy than the Medium cycle, while the Sanitize modifier is proven to kill 99.9% of bacteria in the final rinse.
RESPECT FOR THE PLANET
CONNECTED ENERGY INSIGHTS
Designed to work beyond the kitchen, this dishwasher offers energy insights through Wi-Fi and the SmartHQ™ app. Understand the estimated energy usage of each cycle before it begins, track consumption over time with daily, weekly or monthly energy insights, and discover simple ways to reduce energy use through helpful tips and guidance. Providing greater visibility into everyday energy consumption, it helps you make more informed decisions about how and when you run your dishwasher.
BUILT TO LAST
ENGINEERED FOR LIFE
Trust is earned over time through consistent results. That’s why our team of scientists test wash performance using over 100,000 pieces of cutlery and crockery each year. Carefully measuring soil removal, water use and energy use, we continuously refine our cycles to deliver proven consistency, wash after wash, transforming routine into ritual.
Specifications
- Height
- 3334 - 3618 "
- Width
- 2312 "
- Depth
- 221316 "
Accessories (included)
| Accessories (included) Attributes | Value |
|---|---|
| Cutlery basket | |
| Kickstrip |
Capacity and loading
| Capacity and loading Attributes | Value |
|---|---|
| Accommodates round plates up to (lower basket) | 12 34" |
| Accommodates round plates up to (top basket) | 9 1316" |
| Adjustable height, foldable cupracks | |
| Easy lift adjustable upper basket | |
| Fold down tines | |
| Full width cutlery/utensil tray | |
| Large crockery insert in lower basket | |
| Pitch adjustable tines | |
| Place settings | 16 |
| Telescopic slides | |
| Wine glass supports with stemware grippers |
Connected Features
| Connected Features Attributes | Value |
|---|---|
| Alerts and notifications | |
| Education and onboarding | |
| Energy consumption monitoring | |
| Monitoring | |
| Remote operation | |
| Software updates |
Consumption
| Consumption Attributes | Value |
|---|---|
| Energy rating | Energy star Most efficient |
| Energy usage | 210kWh/year |
| In-use energy carbon emissions estimate | 74.1kgCO2e/year |
| Water usage (per wash cycle) | 3.2 gal |
Controls
| Controls Attributes | Value |
|---|---|
| Energy saving delay start option of up to 24 hours | |
| Floor light cycle feedback | |
| Internal light | |
| Internal wash selector | |
| Keylock | |
| Rinse aid indicator light | |
| Smart Appliance |
Features
| Features Attributes | Value |
|---|---|
| Air curtain for countertop protection | |
| Auto Door Open Dry | |
| Fan assisted drying | |
| Flood protection | |
| Fully independent spray arms | |
| Half load option | |
| Internal tub material | Stainless Steel |
| Motor type | BLDC |
| Three-stage filtration system | |
| Variable wash pressure technology |
Performance
| Performance Attributes | Value |
|---|---|
| Noise emissions | 42dBA |
Power requirements
| Power requirements Attributes | Value |
|---|---|
| Amperage | 10A |
| Supply frequency | 60 |
| Supply voltage | 100 - 120VV |
Product dimensions
| Product dimensions Attributes | Value |
|---|---|
| Depth | 22 1316" |
| Height | 33 34 - 36 18" |
| Width | 23 12" |
Wash Program Modifiers
| Wash Program Modifiers Attributes | Value |
|---|---|
| Dry + | |
| Half-load | |
| Intensive | |
| Sanitize | |
| Wash modifiers | 4 |
Wash Programs
| Wash Programs Attributes | Value |
|---|---|
| 60 min | |
| Auto | |
| Eco | |
| Glassware | |
| Heavy | |
| Light | |
| Medium | |
| Rinse | |
| Wash programs | 8 |
Water connection
| Water connection Attributes | Value |
|---|---|
| Water pressure | 30kPa - 1000 kPa |
Resources
