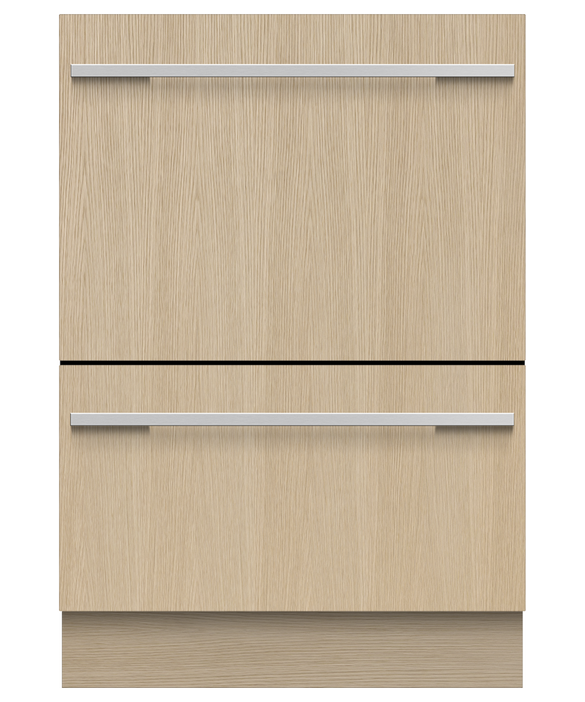

Series 9, Integrated Tall Double DishDrawer™ Dishwasher, pdp
DD24DTI9 N

Series 9
Integrated Tall Double DishDrawer™ Dishwasher

3.5 out of 5 Customer Rating Reviews
  • Integrated
  • Smart
Doing the dishes got easier. Load one drawer while the other washes – with the top drawer fitting your large dinner plates easily.
In-use Energy Carbon Emissions Estimate
92.8kgCO2e/year
Receive up to 15% Rebate

Receive up to 15% Rebate

Offer ends 31 December 2025. *T&Cs apply.

Purchase qualifying Fisher & Paykel appliances from an authorized retailer in a single transaction between October 1, 2024 and December 31, 2025 and receive up to 15% rebate by way of a Prepaid Mastercard® and 5 year warranty available on qualifying purchases*. Claim by December 31, 2026.

*View full T&Cs

Series 9, Integrated Tall Double DishDrawer™ Dishwasher
Panel Ready
Where to Buy
Finish
Panel Ready
starting from $1,949.00
Where to Buy
Added to your cart
Review Cart

Series 9
Integrated Tall Double DishDrawer™ Dishwasher

  • Knock to pause function is perfect if you miss a dish
  • Six wash programs, as well as additional Quick wash, Sanitize and Extra Dry options
  • Flexible racking can be folded down to fit bigger dishes
  • Customize with your own kitchen cabinetry or purchase our stainless steel door panel accessory
Height 34 - 363⁄8 "
Width 239⁄16 "
Depth 213⁄4 "

RECEIVE UP TO 15% REBATE

Features & Benefits

The feature images used on this page are examples to demonstrate the product benefits and may differ slightly from the actual product.

SEAMLESS INTEGRATION
DESIGNED TO FIT

SEAMLESS INTEGRATION

Slide your DishDrawer™ Dishwasher into an existing kitchen space or integrate into kitchen cabinetry, for a seamless look whilst delivering superior dish care.

Ease of use
BEAUTIFUL TO USE

Ease of use

DishDrawer™ Dishwashers are as easy to open and close as kitchen drawers and can be conveniently positioned at bench height for ease of loading and minimal bending. Flexible racking allows you to make adjustments to fit in a variety of dishes.

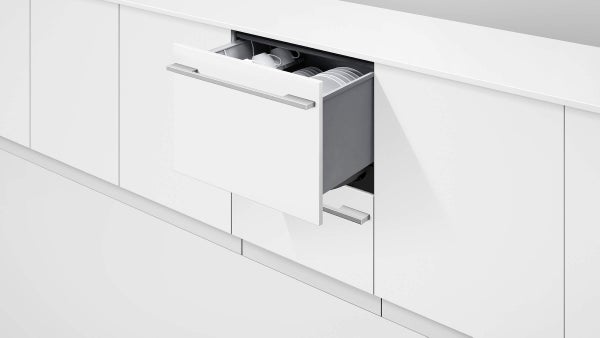

Independent Wash
PERFECT RESULTS

Independent Wash

With the ability to use both drawers independently and select different wash programs the DishDrawer™ Dishwasher can wash everything from fine glass and crystal to heavily soiled pots and pans.

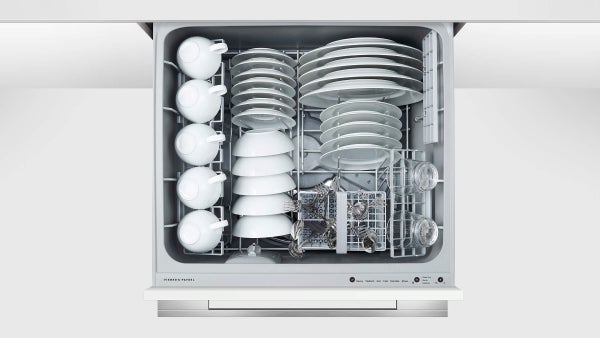

TRUE HALF LOAD
BEAUTIFUL TO USE

TRUE HALF LOAD

Each drawer holds a true half load for guilt-free small washes and fast turnaround of your dishes. Both drawers operate independently so different wash cycles can run simultaneously to accommodate a variety of loads.

Quick, Sanitize and Extra Dry options
PERFECT RESULTS

Quick, Sanitize and Extra Dry options

The Quick wash modifier delivers a faster wash while maintaining performance. The Sanitize option provides extra protection killing 99.9% of bacteria in the final rinse. The Extra Dry setting is perfect for plastic dishes.

Knock to pause
BEAUTIFUL TO USE

Knock to pause

Instead of needing a remote control, these DishDrawer™ Dishwashers have a knock to pause function. A knock on the front panel will pause the dishwasher which can be re-started again by using the start/play button.

Quiet performer
BEAUTIFUL TO USE

Quiet performer

Running at a very low decibel rating, these DishDrawer™ dishwashers do their job without making a fuss. The combination of intelligent technology and simple mechanics means greater reliability and excellent wash performance.

Specifications

heading.dimensions.header
Height
34 - 363⁄8 "
Width
239⁄16 "
Depth
213⁄4 "

Accessories (included)

Accessories (included) Attributes Value
Cutlery basket
Kickstrip
Knife clip and multipurpose clip

Accessories (sold separately)

Accessories (sold separately) Attributes Value
Door panel recessed handle matte black glass ADDD24DTZB
Door panel recessed handle stainless steel ADDD24DTNX

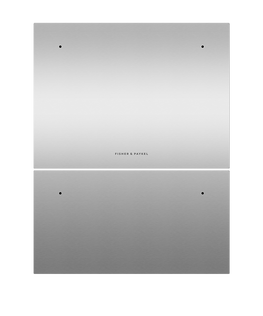

Door panel stainless steel ADDD24DTPX
Handle kit Classic AHCL-DDDW-24X
Handle kit Contemporary round, aluminium AHS-OBDD-60S
Handle kit Contemporary square fine, aluminium AHD5-OBDD-60SX
Handle kit Contemporary square fine, black AHD5-OBDD-60SB
Handle kit Contemporary square, aluminium AHD3-OBDD-60S
Handle kit Professional round flush AHP3-DWDD-SX
Handle kit Professional round flush, Brass off-stands AHP3DDDW24BA
Handle kit Professional round flush, Dark Copper off-stands AHP3DDDW24DC

Capacity and loading

Capacity and loading Attributes Value
Accommodates round plates up to (lower drawer) 11"
Accommodates round plates up to (upper drawer) 12.25" (top) 11" (bottom)
Adjustable height, foldable cupracks
Fold down tines
Pitch adjustable tines
Place settings 14
Place settings per drawer 7

Consumption

Consumption Attributes Value
Energy usage 263kWh/year
In-use energy carbon emissions estimate 92.8kgCO2e/year
Water usage (per wash cycle) 3.28 gal running both tubs

Controls

Controls Attributes Value
Electronic fault/Diagnostic indicator
End of cycle beeps
Energy saving delay start option of up to 12 hours
Internal wash selector
Keylock
Knock to pause
Rinse aid indicator light
Smart Appliance

Features

Features Attributes Value
Fan assisted drying
Flood protection
Flow through detergent dispenser
Motor type BLDC
Quiet operation
SmartDrive™ technology

Performance

Performance Attributes Value
Noise on standard cycle top drawer 43dBA

Power requirements

Power requirements Attributes Value
Amperage 10A
Electric circuit 3 wire
Rated current 15A
Supply frequency 60Hz
Supply voltage 100 - 120V

Product dimensions

Product dimensions Attributes Value
Depth 21 3⁄4"
Height 34 - 36 3⁄8"
Width 23 9⁄16"

Warranty

Warranty Attributes Value
Parts and labor Limited 2 years

Wash Program Modifiers

Wash Program Modifiers Attributes Value
Extra Dry
Quick
Sanitize
Wash modifiers 3

Wash Programs

Wash Programs Attributes Value
Delicate
Eco
Fast
Heavy
Medium
Rinse
Wash programs 6

Water connection

Water connection Attributes Value
Inlet water temperature max 140°F
Supplied hose to suit 3/8" (9mm) male compression fitting
Water pressure 30kPa - 1000 kPa
Water supply 3⁄8" to suit Male Compression Fitting

Resources

Select
Please note: Videos are not for downloading purposes

Design Planning

CAD Downloads

Installation

Installation Videos

General

Customer Reviews

Rated 1 out of 5 by from Motherboard malfunction within 1 year We bought another dish drawer because we had one original to the house we bought, and even though it had its problems, the convenience was really nice so we opted to replace with a new one. Within one year of our remodel, the current model malfunctioned with all of the electrical seemingly working from the front panel, but after investigation, the motherboard had to be removed from the rear of the device, and was difficult to access per our repairman, and replacement cost was $900 for parts and labor. Disappointed and hoping this was a fluke but still worried about how long it will last.
Date published: 2025-03-10
Rated 5 out of 5 by from Nice dishwasher Love my new dishwasher. I did get the 2 drawers. There is only my husband and I and it is so nice that I can put the dirty dishes in all day , we don't have a lot, and they are not in the sink . It does not hold a lot so I feel it would not be good for a larger family. I have never used both drawer . Maybe if you use both drawers .But it works for us 2 retired people who don.t have big meals
Date published: 2025-02-01
Rated 5 out of 5 by from Excellent Excellent. Have 2 and very satisfied. Best dishwashers we have ever owned.
Date published: 2025-01-13
Rated 1 out of 5 by from It’s a lemon & I didn’t buy it for lemonade Top drawer restarts continuously - 3rd repair visit scheduled for tomorrow since it was installed about 1 month ago!! I can’t use it unless I sl add o use the app to know the run time & set an alarm to stop at end of the cycle. Even then j have to leave it open or it will restart.
Date published: 2024-10-31
Rated 1 out of 5 by from Can’t complete a wash cycle without errors Constant errors since buying. Technician has now been out twice with no rememedy. Seller won’t support product in any way. Will never buy anything of this brand again.
Date published: 2024-08-04
Rated 5 out of 5 by from Great experience with our first Fisher Paykel. This is our second unit we enjoyed the first for 19 years.
Date published: 2024-06-29
Rated 2 out of 5 by from 3 months in- minimal use- bottom drawer leaked I was very excited to get this unit. The top drawer is what I use almost daily. I have used the bottom drawer only occasionally because we are empty nesters and don’t have that much daily washing to do. My completed kitchen was delivered sometime in May and I have used the bottom drawer a few times and this last week I noticed water on the floor and when I got down on the floor noticed it was leaking at two points. They were trickles but the water did puddle. I reached out to the appliance retailer and the service person who gave window of 3-6pm yesterday called at 2pm and rescheduled for today. I am keeping my fingers crossed that this will be resolved soon. Out of an abundance of caution I am taking on further expense with an extended warranty since the warranty is only 1 year.
Date published: 2023-08-24
Rated 1 out of 5 by from Has never finish the wash cycle w/o shorting out. Living goods installed our dishwasher drawers last month and we have attempted to use them, but they short out and never finish the cycle. It is not an electrical problem on our system. Still waiting for service to see what the problem is.
Date published: 2023-08-20
