Features & Benefits
The feature images used on this page are examples to demonstrate the product benefits and may differ slightly from the actual product.

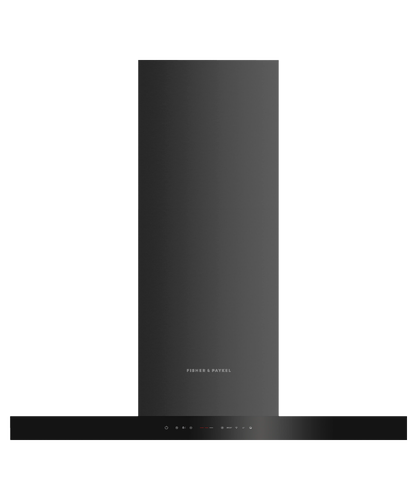

HC90DCBB4
90cm Series 7
Box Chimney Wall Rangehood
- Contemporary
- Smart
This Contemporary style rangehood extracts steam, grease and cooking odours quietly and efficiently.
REDEEM UP TO $2,000
Offer ends 13 May 2025. *T&Cs apply.
Purchase at least three qualifying Fisher & Paykel Kitchen appliances with a minimum total spend of $8,000 in a single transaction between
- Finish
- Black Stainless Steel and Glass
$ 1,899.00
Please enter a postcode to check for stock & delivery information.
Please enter a postcode to check for stock & delivery information.
90cm Series 7
Box Chimney Wall Rangehood
- With three fan speeds plus boost, select the perfect extraction rate for your cooking
- Powerful maximum air movement of 780m³/hr
- Energy-efficient LED lighting to illuminate your cooking surface
- Wi-Fi enabled for notifications through the SmartHQ™ app
Height
635-1035mm
Width
898mm
Depth
500mm
BEAUTIFUL TO USE
Effective Extraction
Featuring perimeter extraction, four fan speeds, and a boost function, this range hood provides powerful extraction to quickly remove odors and steam. Odours can linger in the kitchen well after cooking is finished so the timer keeps the hood working for up to 15 minutes before automatically turning off.
BEAUTIFUL TO USE
Simple Controls
The intuitive control panel responds to the touch of your finger. LED strip lighting illuminates the entire cooktop surface for the perfect sear or ideal reduction. Rangehood settings, including temperature and fan speed, can be controlled via the SmartHQ™ app, with additional voice control options for fan speeds and lighting.
BEAUTIFUL TO USE
Easy Cleaning
Designed for simple removal, the filters are easy to clean and dishwasher safe, while the glass and stainless steel finish is easily wiped clean. The SmartHQ™ app will notify you when to clean the filter to ensure you get the best performance out of your rangehood.
DESIGNED TO FIT
Complementary Design
The brushed black stainless steel finish of this vent hood will complement any contemporary kitchen and is designed to match the rest of Fisher & Paykel kitchen appliance family.
DESIGNED TO FIT
Easy Installation
This rangehood is the perfect partner to your Fisher & Paykel cooktop. It can be either externally ducted or internally recirculated, making it perfect for apartments.
DESIGNED TO FIT
Designed To Match
With the option of stainless steel or brushed black stainless steel, you can choose the perfect finish to match your Fisher & Paykel cooktop and achieve a coherent kitchen aesthetic.
Specifications
- Height
- 635-1035mm
- Width
- 898mm
- Depth
- 500mm
Accessories (included)
| Accessories (included) Attributes | Value |
|---|---|
| Aluminium filter | 793707 |
Accessories (sold separately)
| Accessories (sold separately) Attributes | Value |
|---|---|
| Chimney extension | 793716 |
| Recirculation carbon filter | 793599 |
| Recirculation diverter | 793713 |
Fan ratings
| Fan ratings Attributes | Value |
|---|---|
| Maximum air movement | 810m³/hr |
Installation and cleaning
| Installation and cleaning Attributes | Value |
|---|---|
| Dishwasher safe filters | 3 |
| Ducted | Top extraction only |
| Recirculation | Optional - top extraction |
| Stainless steel filter cover | |
| Two piece height adjustable flue |
Performance
| Performance Attributes | Value |
|---|---|
| Extraction type | Surface |
| Fan speeds | 3 |
| Filter type | Mesh |
| Number of filters | 3 |
Power requirements
| Power requirements Attributes | Value |
|---|---|
| Supply frequency | 50Hz |
| Supply voltage | 220-240V |
| Total Power | 248W |
Product dimensions
| Product dimensions Attributes | Value |
|---|---|
| Depth | 500mm |
| Height | 635-1035mm |
| Width | 898mm |
Ventilation features
| Ventilation features Attributes | Value |
|---|---|
| Auto-off/Run-on timer | |
| Dimmable lights | |
| Filter cleaning alert | |
| Light type | LED strip |
| Smart Appliance | |
| Timer function |
Warranty
| Warranty Attributes | Value |
|---|---|
| Parts and labour | 2 years |
Resources
Please note: Videos are not for downloading purposes
Download the resource
Download and open pdf in new tab
Design Planning
CAD Downloads
Installation
Customer Reviews
Rated 2 out of
5
by
Scottie from
Need earmuffs.
Unfortunately we did not have the look at & try this Rangehood out, in store!! We can see why. Very noisy!! Thought a 747 was flying over our wee house!!?? when we first used it. Valuable lesson to be learnt here. Other F & P purchases happy with. A lot of dollars for a lot of noise. Tricia.
Date published: 2025-04-07
Rated 3 out of
5
by
Kaye from
Efficient but noisy rangehood.
The rangehood is excellent in every respect other than it being noisy. It is difficult to have a conversation if you're standing near it, while it's on. Listening to music while you cook with it on, is also a impossible.
Date published: 2025-03-21
Rated 5 out of
5
by
Marty W from
Rangehood
This appluance has a great suck functionality and an additional boost function which us awesome.
Date published: 2024-12-27
Rated 3 out of
5
by
Catherine from
F&P extractor
A good looking style of fan. But it is rather noisy when going. Was not very easy to install even though my husband is a builder . Also we didn't realize it had a plastic removable film until it was too late.
Date published: 2024-12-23
Rated 5 out of
5
by
Naki from
Classy rangehood
The rangehood is very effective with great aesthetics
Date published: 2024-06-10
Rated 5 out of
5
by
Glad from
runs efficiently-quietly great product looks great
wall Rangehood90cm looks great works well over oven
Date published: 2023-12-23
