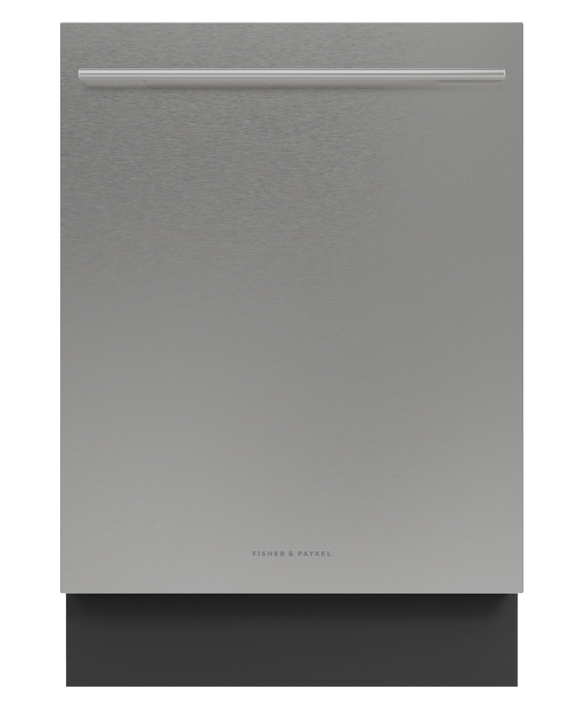

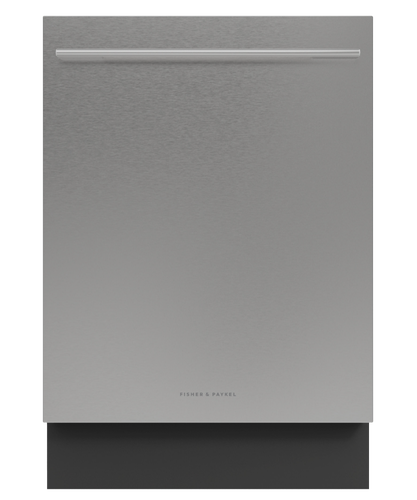

DW60UDT4X4
Series 9
Contemporary Tall Built-under Dishwasher
- Contemporary
- SMART & CONNECTED
A tall built-under dishwasher with considered detailing and seamless integration, offering increased internal height for larger cookware and entertaining essentials. Telescopic slide racking supports flexible loading, complemented by interior illumination for improved visibility throughout. Auto sensing technology adjusts water and wash intensity automatically, and quiet performance suits open plan living.
For connectable products please see the Cyber Security Compliance Statement
Save up to 10%
Offer ends 30 June 2026. *T&Cs apply.
Available on qualifying kitchen and laundry appliances.
Valid 1 March - 30 June 2026.
- Finish
- Stainless Steel
Series 9
Contemporary Tall Built-under Dishwasher
- Designed to maximise usable space, with pitch-adjustable tines for deeper dishes and bowls
- Auto sensing wash adjusts water and wash intensity to suit each load
- Auto Door Open Dry releases excess steam, while an Air Curtain directs it away from surrounding cabinetry
- Wi-Fi enabled and works with the SmartHQ™ app for remote control and notifications
Height
857 - 917mm
Width
597mm
Depth
580mm
Specifications
- Height
- 857 - 917mm
- Width
- 597mm
- Depth
- 580mm
Accessories (included)
| Accessories (included) Attributes | Value |
|---|---|
| Cutlery basket | |
| Kickstrip |
Capacity and loading
| Capacity and loading Attributes | Value |
|---|---|
| Accommodates angled platters or baking trays up to (lower basket) | 370mm |
| Accommodates round plates up to (lower basket) | 325mm |
| Accommodates round plates up to (top basket) | 220mm (with cutlery tray), 280mm (cutlery tray removed) |
| Adjustable height, foldable cupracks | |
| Easy lift adjustable upper basket | |
| Fold down tines | |
| Full width cutlery/utensil tray | |
| Height adjustable rear wine glass supports | |
| Large crockery insert in lower basket | |
| Pitch adjustable tines | |
| Place settings | 15 |
| Telescopic slides | |
| Wine glass supports with stemware grippers |
Connected Features
| Connected Features Attributes | Value |
|---|---|
| Alerts and notifications | |
| Cyber Security updates until | 15 / 07 / 2031 |
| Education and onboarding | |
| Energy consumption monitoring | |
| Monitoring | |
| Remote operation | |
| Software updates |
Consumption
| Consumption Attributes | Value |
|---|---|
| Energy rating | 4.5 star |
| Energy usage | 206kWh/year |
| In-use energy carbon emissions estimate | 125.7kgCO2e/year |
| Water consumption (per wash cycle) | 11.1L |
| Water efficiency | 5.5 star (WELS) |
Controls
| Controls Attributes | Value |
|---|---|
| Energy saving delay start option of up to 24 hours | |
| Floor light cycle feedback | |
| Internal light | |
| Internal wash selector | |
| Keylock | |
| Rinse aid indicator light | |
| Smart Appliance |
Features
| Features Attributes | Value |
|---|---|
| Air curtain for bench protection | |
| Aquastop | |
| Auto Door Open Dry | |
| Fan assisted drying | |
| Flood protection | |
| Fully independent spray arms | |
| Half load option | |
| Internal tub material | Stainless Steel |
| Motor type | BLDC |
| Three-stage filtration system | |
| Variable wash pressure technology |
Performance
| Performance Attributes | Value |
|---|---|
| Noise emissions | 42dBA |
Power requirements
| Power requirements Attributes | Value |
|---|---|
| Amperage | 10A |
| Supply frequency | 50Hz |
| Supply voltage | 220 - 240V |
Product dimensions
| Product dimensions Attributes | Value |
|---|---|
| Depth | 580mm |
| Height | 857 - 917mm |
| Width | 597mm |
Wash Program Modifiers
| Wash Program Modifiers Attributes | Value |
|---|---|
| Dry + | |
| Half-load | |
| Intensive | |
| Sanitise | |
| Wash modifiers | 4 |
Wash Programs
| Wash Programs Attributes | Value |
|---|---|
| 60 min | |
| Auto | |
| Eco | |
| Glassware | |
| Heavy | |
| Light | |
| Medium | |
| Rinse | |
| Wash programs | 8 |
Water connection
| Water connection Attributes | Value |
|---|---|
| Water pressure | 30kPa - 1000 kPa |
| Water supply | 34" BSP (20mm) Connector Water Inlet Hose |
