Features & Benefits
The feature images used on this page are examples to demonstrate the product benefits and may differ slightly from the actual product.

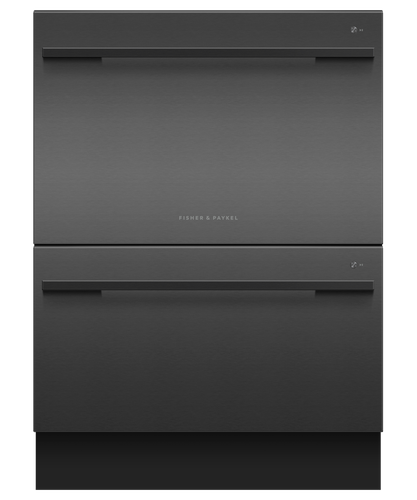

DD60DDFHB9
Series 9
Contemporary Double DishDrawer™ Dishwasher
- Contemporary
-
Smart
Wash one drawer while you load the other, with minimal bending. Or wash both at once, with room in each drawer for full size dinner plates.
For connectable product please see the PSTI Compliance Statement
Black Stainless Steel
£1,945.00
- Finish
- Black Stainless Steel
£1,945.00
In Stock
In Stock
Series 9
Contemporary Double DishDrawer™ Dishwasher
- Six wash programs, as well as additional Quick wash, Sanitise and Extra Dry options
- Black stainless steel finish with black anodised aluminium handle and buttons
- Flexible racking allows you to customise internal shelves to suit your needs
- Pairs beautifully with our Black French Door Refrigerator
Height
820 - 880mm
Width
599mm
Depth
573mm
PERFECT RESULTS
Multiple Wash Types
Wash modifiers allow specialised cycle settings. Quick delivers faster with no performance reduction, Sanitise provides extra protection from bacteria, and Extra Dry is perfect for plastic dishes.
BEAUTIFUL TO USE
Ease of use
DishDrawer™ Dishwashers are as easy to open and close as kitchen drawers, making loading dishes simple. Flexible racking allows you to make adjustments to fit in a variety of dishes.
DESIGNED TO FIT
Beauty Of Choice
As much a high performance appliance as a design component, the black DishDrawer™ Dishwasher brings a touch of sophistication to your kitchen, on its own or part of a matching kitchen appliance set.
BEAUTIFUL TO USE
Independent Washing
With the ability to use both drawers independently and select different wash programs, the DishDrawer™ Dishwasher can wash everything from fine glass and crystal to heavily soiled pots and pans.
RESPECT FOR THE PLANET
True Half Load
Each drawer holds a true half load for small, fast dish washing that won't waste water. Both drawers operate independently so two wash cycles can operate simultaneously to allow for varying loads.
BEAUTIFUL TO USE
Quiet Performer
The DishDrawer™ Dishwasher does its job without making a fuss - running at a very low decibel rating, they produce little in the way of noise.
Specifications
- Height
- 820 - 880mm
- Width
- 599mm
- Depth
- 573mm
Accessories (included)
| Accessories (included) Attributes | Value |
|---|---|
| Cutlery basket | |
| Kickstrip | |
| Knife clip and multipurpose clip |
Capacity and loading
| Capacity and loading Attributes | Value |
|---|---|
| Accommodates round plates up to | 280mm |
| Adjustable height, foldable cupracks | |
| Fold down tines | |
| Pitch adjustable tines | |
| Place settings | 12 |
| Place settings per drawer | 6 |
Consumption
| Consumption Attributes | Value |
|---|---|
| Energy rating | E |
| Energy usage | 54kWh/100 cycles per drawer |
| In-use energy carbon emissions estimate | 10.7kgCO2e/100 cycles per drawer |
| Water usage (per wash cycle) | 7.8L per drawer |
Controls
| Controls Attributes | Value |
|---|---|
| Electronic fault/Diagnostic indicator | |
| End of cycle beeps | |
| Energy saving delay start option of up to 12 hours | |
| Internal wash selector | |
| Keylock | |
| Rinse aid indicator light | |
| Smart Appliance |
Features
| Features Attributes | Value |
|---|---|
| Built-in water softener | |
| Fan assisted drying | |
| Flood protection | |
| Flow through detergent dispenser | |
| Quiet operation | |
| SmartDrive™ technology |
Performance
| Performance Attributes | Value |
|---|---|
| Noise on standard cycle top drawer | 43dBA |
| Quiet mark certified |
Power requirements
| Power requirements Attributes | Value |
|---|---|
| Amperage | 10A |
| Supply frequency | 50Hz |
| Supply voltage | 220 - 240V |
Product dimensions
| Product dimensions Attributes | Value |
|---|---|
| Depth | 573mm |
| Height | 820 - 880mm |
| Width | 599mm |
Warranty
| Warranty Attributes | Value |
|---|---|
| Parts and labour | 5 years |
Wash Program Modifiers
| Wash Program Modifiers Attributes | Value |
|---|---|
| Extra Dry | |
| Quick | |
| Sanitise | |
| Wash modifiers | 3 |
Wash Programs
| Wash Programs Attributes | Value |
|---|---|
| Delicate | |
| Eco | |
| Fast | |
| Heavy | |
| Medium | |
| Rinse | |
| Wash programs | 6 |
Water connection
| Water connection Attributes | Value |
|---|---|
| Water pressure | 100kPa - 1000kPa |
| Water supply | 34" BSP (20mm) Connector Water Inlet Hose |
Resources
Please note: Videos are not for downloading purposes
Download the resource
Download and open pdf in new tab
Design Planning
CAD Downloads
-
2D CAD Files
General
Customer Reviews
Rated 3 out of
5
by
Anonymous from
Series 9 Integrated - excellent but design issues
This is the text I sent to customer.feedback@fisherpaykel.com on 29/11/24 (no reply received): "I installed a new F & P DD60DDFHX9 dishwasher a few days ago s/n BAV453977 and registered the warranty yesterday. This unit replaces the series 7 version, which we have had without issues for the past 12 years.
I called this morning with a query on the warranty and the lady I spoke with provided this email address to provide feedback:
1. Firstly, I appreciate the ease of being able to reach your customer services people and I have found them very helpful, thank you.
2. I called on the warranty because it is unclear if it is 2 years or 5 years. The warranty booklet provided with the dishwasher states 2 years but the website states 5 years. The confirmation of registration does not state anything about the warranty period. I requested that in future the registration confirmation should include the end date of the warranty (e.g. 21/11/2029 in my case). I also requested the format be changed so there is not a large black area, which is very ink wasteful if printing, which most people will want to.
3. It was extremely difficult to fix the 2 on each side fixing brackets. I followed method A as recommended and although it would have been easier if I’d removed the drawer, I did not want to risk this and it is not recommended. I have been in touch with the kitchen installer/manufacturer who originally installed our first dishwasher and he agrees with me. It is very difficult and fiddly to insert and screw in the fixing screws and, moreover, to drill a pilot hole square because even a small chuck fouls on the frame. For future customers please give consideration to modifying for a better method of securing the unit.
4. The tone when using the ‘DELAY START’ is barely audible. On the original Series 7 the pulse sound was much louder and easy to hear. Although in general I like that display features are now concealed within the dishwasher, the difficulty of hearing the delay start tone is a disappointing feature. I presume this cannot be altered through a setting?"
Date published: 2024-12-30
Rated 5 out of
5
by
Los family from
Our second purchase of the beautiful double draw
We have just bought our second double draw dishwasher it replaces the 15 year old one we have just updated Brilliant new edition to the house another fifteen year of shiny plates !!!
Date published: 2024-12-27
Rated 5 out of
5
by
Anonymous from
2 Draw Dishwasher
While a considered purchase very, very pleased with the DishDraw why hasn't anyone come up with this before. Less clutter in the kitchen as you cand get one of the draws on its wash. Able to use both draws at the same time. This far a lovely machine 😁
Date published: 2024-11-04
Rated 4 out of
5
by
Priscilla from
Much better than my previous double DishDrawer
I love the design of the double drawer dishwasher. However, my previous model washed terribly. Thankfully this new one is much better.
Date published: 2024-10-23
Rated 5 out of
5
by
Timd from
Quality design, construction and support
We've had an older machine for many year. Ridiculously reliable! Ultimately damp invaded some circuit boards that caused its demise. New design improved to avoid a repeat
Date published: 2024-10-04
Rated 5 out of
5
by
Kurt from
Dish drawer
Single drawer is so good and has capacity for a family of four that we questioned the need for the second drawer. The ability to do what feels like a half load is great.
Following a larger family meal at the weekend having the second drawer really plays dividends.
Date published: 2024-09-30
Rated 5 out of
5
by
BruceT from
Delighted repeat customers
We had a John Lewis branded F&P Dishdrawer which lasted over 13 years, we then replaced with a different brand of conventional dishwasher. We immediately regretted saving a few hundred pounds for a much inferior and less convenient machine. We have now replaced this with this new F&P and are once more very pleased. No more pots cluttering the kitchen waiting for a dishwasher to finish, and as there are only 2 of us now, we find the smaller drawer system much better than filling a full sized conventional machine. Very quiet and even on Eco very effective, we rarely need to use more intensive cycles. Hopefully will prove as reliable as our last Dishdrawer.
Date published: 2024-09-27
Rated 4 out of
5
by
Anonymous from
Great product shame about the kick plate
Great equipment very contemporary the only thing thats a disappointed is the toe kick
cheap and nasty should have been stainless steel
Date published: 2024-09-18
